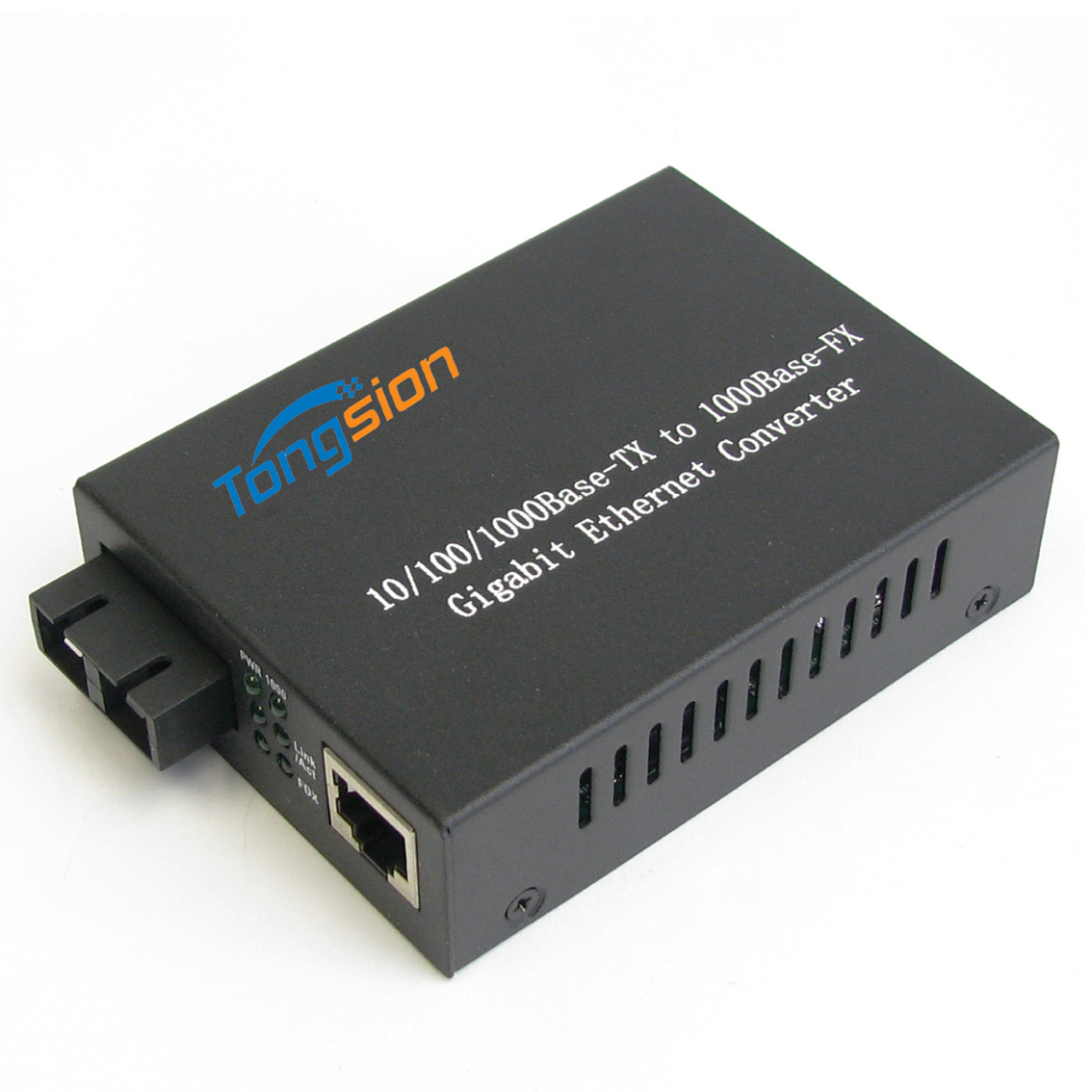

Media Converter
10/100/1000 Base TX to 1000 Base SX/LX/ZX
General DescriptionThis product supports IEEE802.3UI100Base-Tx/Fx ，IEEE802.3Z protocol, as well as full duplex and half duplex mode. This manual is for 1000M transceivers.
Main features
1. In conformity to IEEE 802.3 10 Base-T standard.
In conformity to IEEE 802.3u 100 Base-TX/FX standard.
2. Max. 2M buffer memory built in chip.
3. Back pressure flow control for full duplex
IEEE802.3 X and half duplex.
4. Automatic identification of MDI/MDI-X cross line.
5. High-performance1.4Gbps memory bandwidth.
6. In conformity to safety code of FCC and 15 CLASS B and CE MARK.
Technical parameters
1. Standard Protocol: IEEE802.3 10 Base-T standard
IEEE 802.3u 100Base-TX/FX standard
IEEE802.3Z1000Base-TX/FX standard
2. Connector: oneUTPRJ-45connector,oneSC/ST connector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter: outside: 5V DC 1A
Built-in: 110-265V AC 48VDC
5. Environmental temperature: 0℃-60 ℃
6. Relative humidity: 5%-90%
7. TP cable: Cat5 UTP cable
8. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm
9. Dimensions:
External power supply: 26mmx 70mm x 95mm
Built-in power supply: 30mm x 110mm x 140mm
